Manufacture Directly Selling Galvanized Corrugated Steel Tank Industrial Irrigation Rainwater Collection Tank Round Water Tank

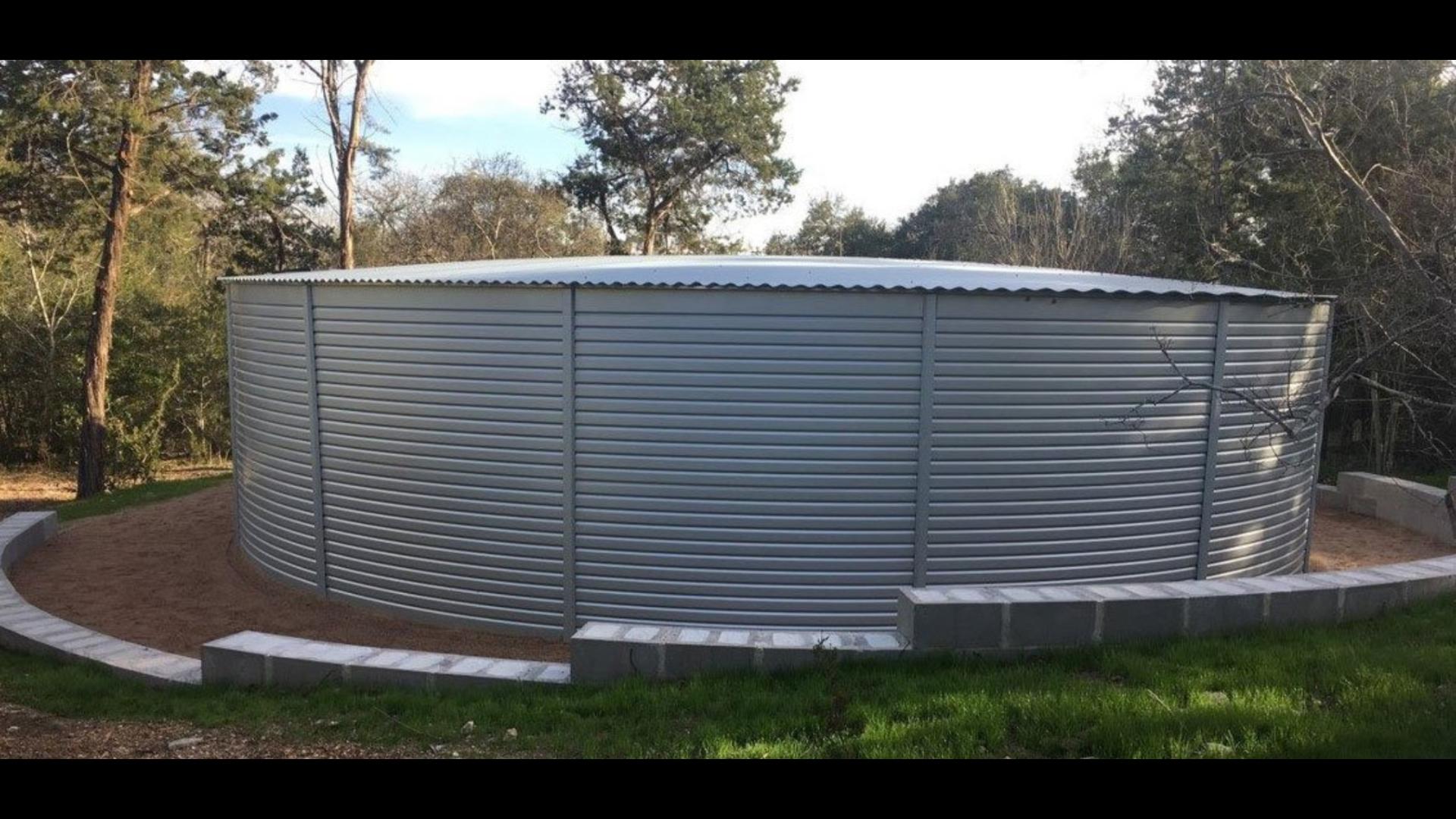

The circular corrugated sectional steel water tank is a cheaper option for water storing as the metal parts are less, its cheap price and easier installation have prevailed globally. The tank is assembled by different sizes of galvanized steel panel for wall, and food-grade tarpaulin for internal which contact with water, therefore any size can be customized, and suitable for drinking water store.

The corrugated steel water tank which has a service life of more than 10 years is an economical, efficient and safe large water storage tank. It is suitable for all kinds of irrigation and domestic water, such as greenhouse irrigation, greenhouse rainwater collecting, temporary water storage at construction sites, etc.

Main Features:

1. Lightweight, easy to delivery;

2. Hot galvanized steel, anti-corrosion, long service life;

3. Simple operation, easy installation.

4. Can be recycled and replace the site, no complex civil, cost saving.






Volume(m3)	Diameter(m)	Height(m)	Units Produced per month(Sets)	Basement required (elevation±2)
55m3	4.58m	3.36m	400	100mm
108m3	6.4m	3.36m	285	100mm
218m3	9.1m	3.36m	200	100mm
319m3	11m	3.36m	166	100mm
562m3	14.6m	3.36m	125	150mm
1163m3	21m	3.36m	86	150mm
1494m3	23.8m	3.36m	76	150mm
1994m3	27.5m	3.36m	66	150mm
2717m3	32.1m	3.36m	57	250mm



Manufacture Directly Selling Galvanized Corrugated Steel Tank Industrial Irrigation Rainwater Collection Tank Round Water Tank

Galvanized Water Storage Tank
